Vessels: Filter Housings

Click here to view these vessels:
VFS Series: Separator/Coalescer
Knock-out Pot/Inlet Filter
VLS Series: Separator
VAG Series / VVS Series

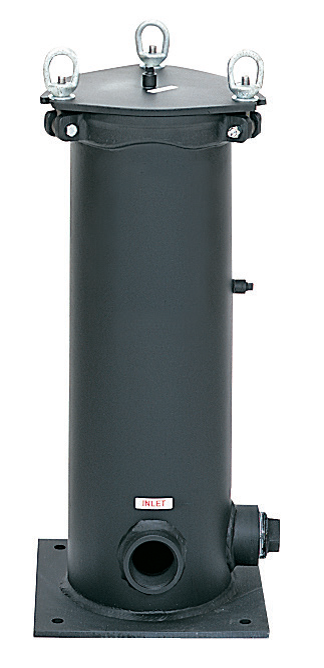

Hydraulic Cartridge Housings


Call or
email us for information and pricing.
1-800-580-7873

Hydraulic Cartridge Housings are designed for the removal of particulate from oils and industrial fluids. Our housings accept standard cartridge inner diameters of 2.625 to 3.5 inches (67 to 89 mm), outer diameters of 6 or 7 inches (152 or 178 mm) and heights up to 44 inches (1118 mm).  Quality construction and design assure clean effluent and protection for all downstream equipment.

Features/Benefits

--Flow rates to 120 gpm (45.4 Lpm)
--Carbon or Stainless Steel construction
--100 PSI (6.9 bar) pressure rating at 250°F (121°C)
--Low pressure drop
--3-bolt swing lid with zinc-plated eye nuts allows for easy opening and closing
--Buna-N® lid seal
--Two-part epoxy finish outside on carbon steel housings

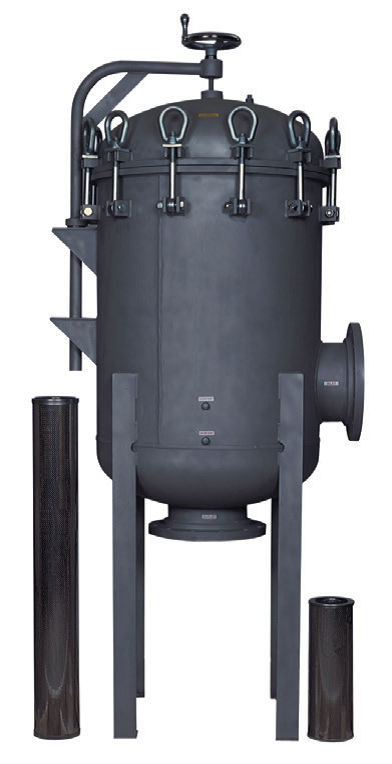

Multiround Hydraulic Housings


Multiround Hydraulic Housings offer high flow rates, chemical compatibility and good particle retention.  They are an ideal choice for particulate and contaminant removal with our hydraulic cartridges.

Features/Benefits

--Flow rates from 360 to 4500 gpm (1362.6 to 17,032.5 Lpm)
--Carbon or Stainless Steel construction
--Bearing-assisted Davit assembly
--Buna-N® lid seals
--150 PSI (10.3 bar) pressure rating
--Differential, drain and vent ports
--Heavy duty support legs
--Two-part epoxy finish outside on carbon steel housings
--Removable 2” heavy-wall center guideposts
--3-round to 38-round capacity
--Full tie-rod element connections for positive seal

 MULTIROUND HYDRAULIC HOUSINGS
Call or email us for information and pricing.
1-800-580-7873

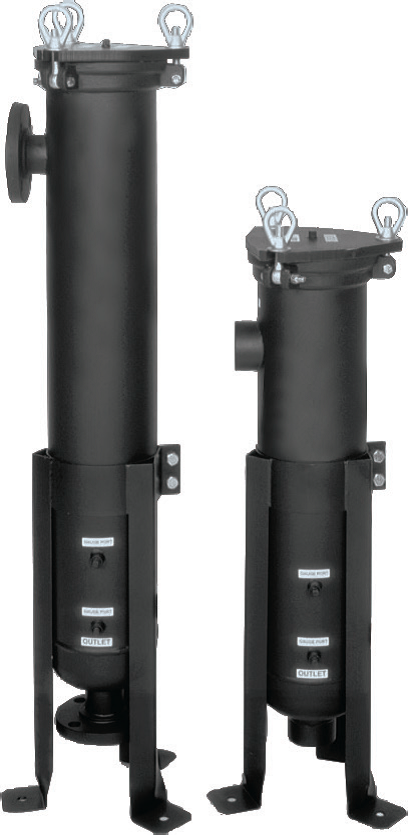

Liquid Cartridge Housings
liquid cartridge housings
Call or email us for information and pricing.
800-580-7873

Liquid Cartridge Housings give the versatility of choosing from single to multi-round cartridge styles to achieve the needed flow rates, chemical compatibility and particle retention. Available in 10”, 20”, 30” or 40” (508, 762, 1016 mm) lengths.

Features/Benefits

--Flow rates range up to 4100  gpm (227.1 Lpm)
--150 (10.3 bar) and 300 psi (20.7 bar) pressure rating
--Carbon or stainless steel construction
--Zinc-plated quick-swing closure with eye nuts
--300 psi (20.7 bar) housing has a slip and blind flange lid

--Buna-n® lid seal
--316 stainless steel cup and spring assemblies

--Differential, drain, and vent ports
--Adjustable support legs
--Two-part epoxy paint inside and outside on carbon steel housings
--316 stainless steel center guide post
--Made to accept double open end cartridges (doe) or 222 style with closed top cap

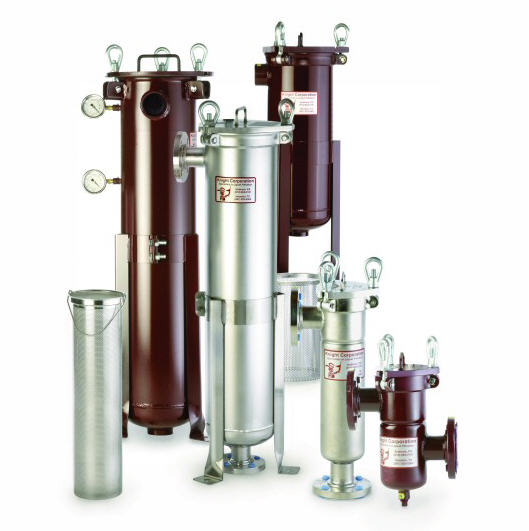

Bag-Filter Housings

 Bag-Filter Housings
Call or email us for information and pricing.
800-580-7873

Bag-Filter Housings are available in many sizes and styles such as single, multi, or duplexing.  Constructed in carbon steel, 304 stainless steel, or 316 stainless steel.

Bag Housings are sometimes called filter vessels. They are top loading with a hinged or threaded lid. A perforated restrainer basket fits inside the shell to support the filter bag under pressure. The plastic ring at the top of the filter bag snaps into a precision groove inside the housing, providing a positive seal to prevent bypass.
